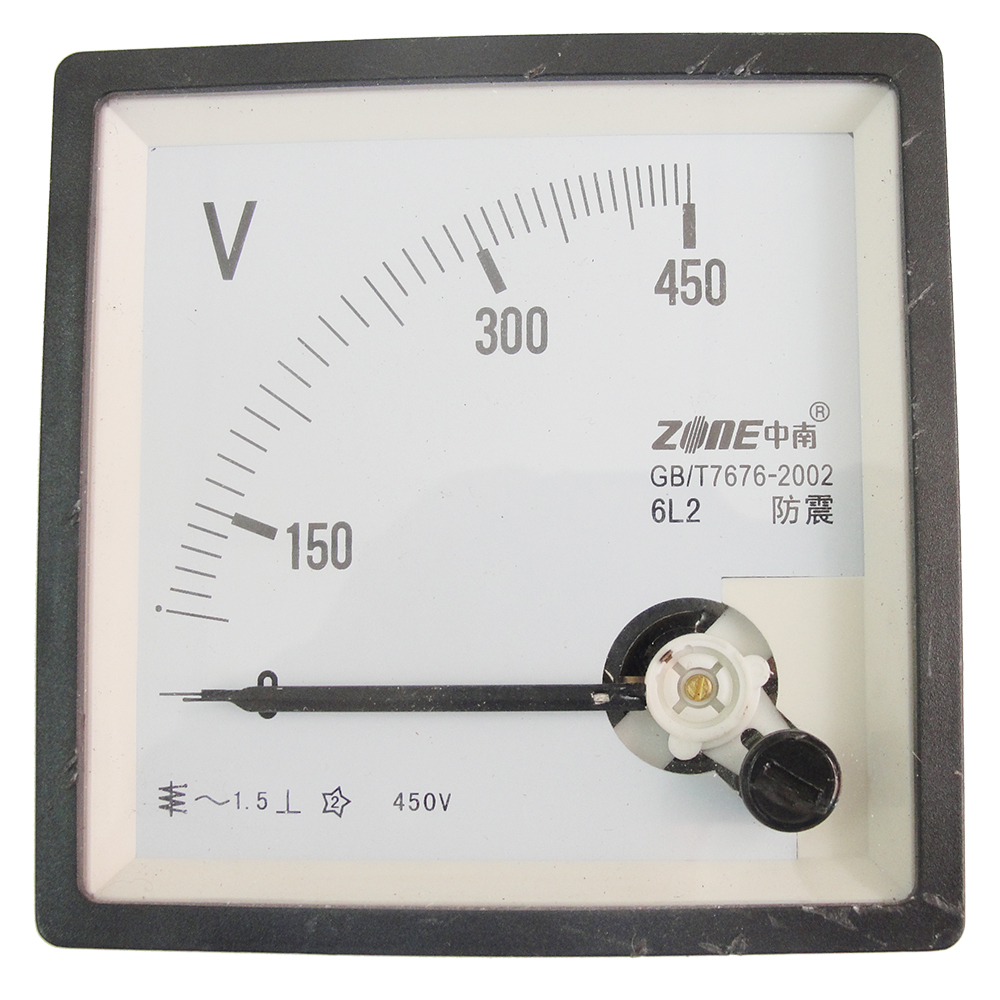

6L2 6C2
Share：
Summary
This series of meters is suitable for various electric quantity control equipment and scientific research departments to test metering instruments, power stations, power grids and other power system distribution board to measure the power consumption, can work normally in damp and hot environment. The instrument performance indicators meet the requirements of GB/T7676.1 ~ 9 standard.
Selection Guide
|
product name |
input mode |
sequence |
type |
|
6 |
L：AC C：DC |
2 |
A：Ammeter V：Voltmeter W：Active power meter VAR:Reactive power meter Hz：Frequency table COS:Power factor meter |
|
input mode |
type |
|
DC |
Ammeter、Voltmeter |
|
AC |
Ammeter、Voltmeter、Active power meter、Reactive power meter、Frequency table、Power factor meter |
Main features
■Display the measured trend of change, reading convenience
■Bolt fastening installation
Main technical parameters
|
Item |
Technical data |
|
National standard |
GB/T 7676.1~9 |
|
Accuracy class |
1.5 class、2.5 class |
|
Puncture test |
frequency 50Hz、voltage 2000V、duration 1min |
|
Environment condition |
temperature：-20～+40℃，relative humidity ≤85%（25℃）；damping ≤4s |
|
Resistance to mechanical properties |
Can withstand the acceleration of 30m/s2 and impact frequency per minute 80～120 times 2 hours of transport shock |
|
Operating position |
Vertical |
|
Outline overall and installing dimensions |
Outline dimension：80mm×80mm Portiforium dimension：76mm×76mm |
6L2/6C2-A、V wiring diagram
6L2-Hz wiring diagram
6L2-COSφ wiring diagram
6L2-W、VAR wiring diagram
